What is Processing?

Processing is an open-source programming language that is considered beginner-friendly because of the following features:

• Visual expression is easier than in many other programming languages (graphs, animations, interactive graphics, etc.)
• The development environment is easy to install and set up

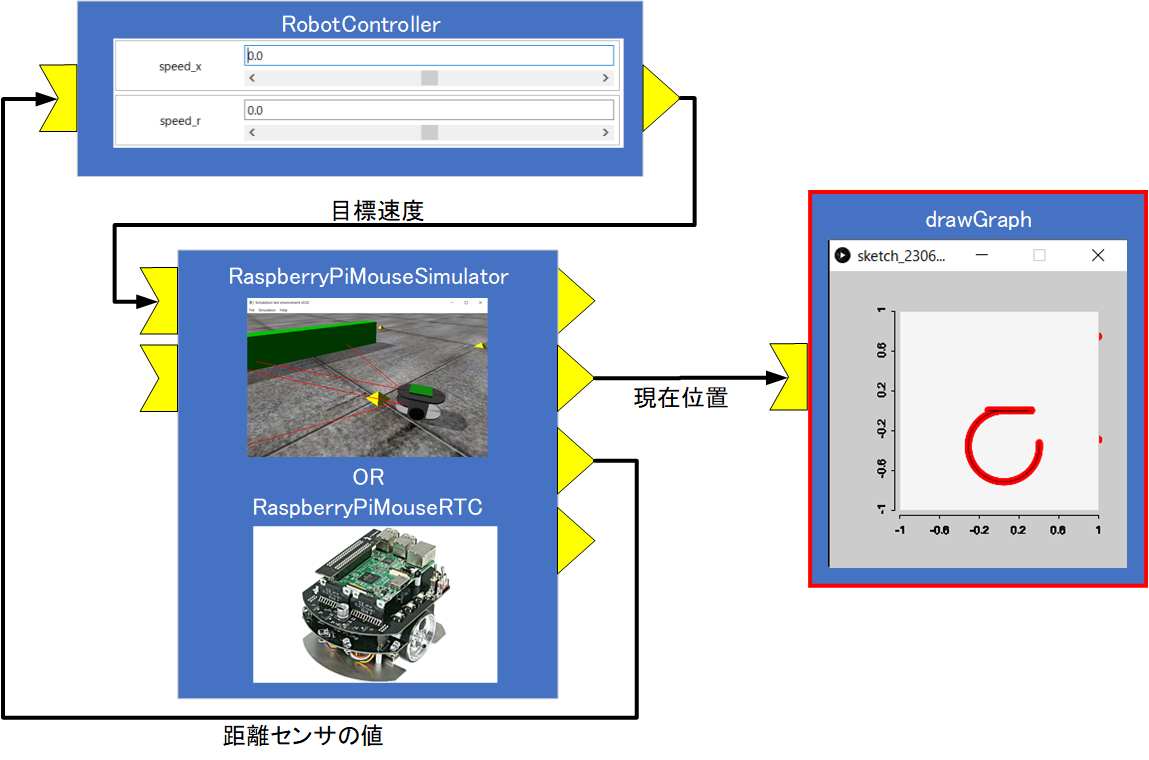

Overview of the Exercise

In this exercise, you will create a system that executes an RTC for graph drawing in Processing and displays the movement trajectory of a Raspberry Pi Mouse on a graph.

Creating the drawGraph Component

Generating Skeleton Code with RTCBuilder

Create the drawGraph component in RTCBuilder using the following specification.

Component Name	drawGraph
Activity	onActivated, onExecute
Language	Processing
InPort
Port Name	in
Data Type	RTC::TimedPose2D

About the RTC::TimedPose2D Type

The RTC::TimedPose2D type is a data type that represents position and orientation on a two-dimensional plane.

    struct Point2D
    {
        /// X coordinate in metres.
        double x;
        /// Y coordinate in metres.
        double y;
    };

    struct Pose2D
    {
        /// 2D position.
        Point2D position;
        /// Heading in radians.
        double heading;
    };

Starting the Processing Development Environment

First, start the Processing IDE (Integrated Development Environment).

Download the Processing development environment from the Processing repository.

• https://github.com/processing/processing/releases/tag/processing-0270-3.5.4

Run processing.exe in the extracted folder.

Due to Java version compatibility issues, OpenRTM-aist currently cannot run in Processing 4.0 or later environments.

If training materials are distributed on a USB drive, use the following files:

• Windows: Processing\processing-3.5.4-windows64\processing.exe
• Ubuntu: Processing/processing-3.5.4-linux64/processing

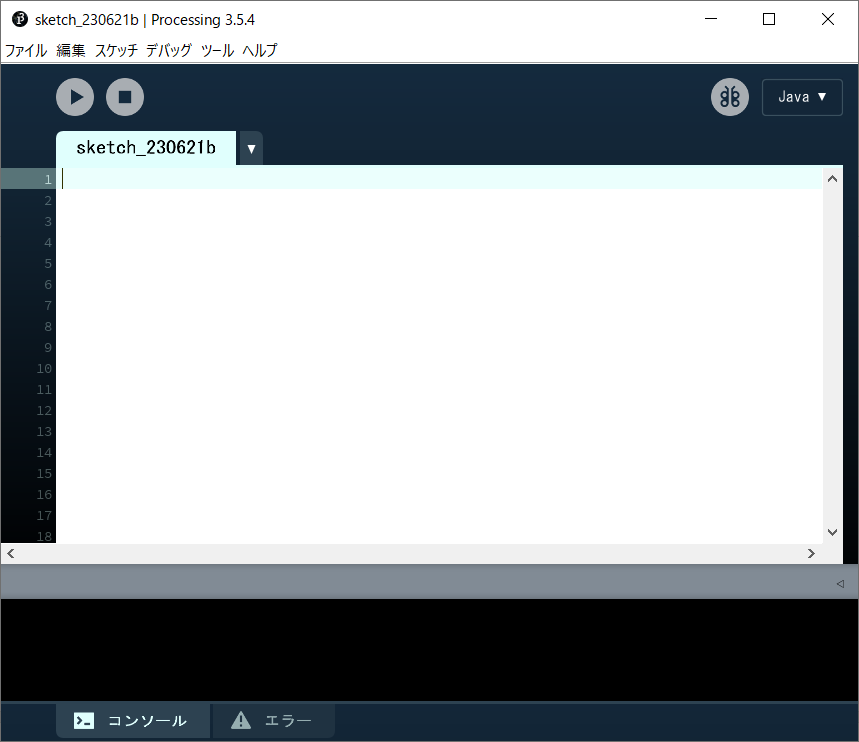

After execution, the following IDE window will appear.

Installing the OpenRTM-aist Library for Processing

Install the library required to use OpenRTM-aist functionality from Processing.

First, determine the location of the Processing Sketchbook.

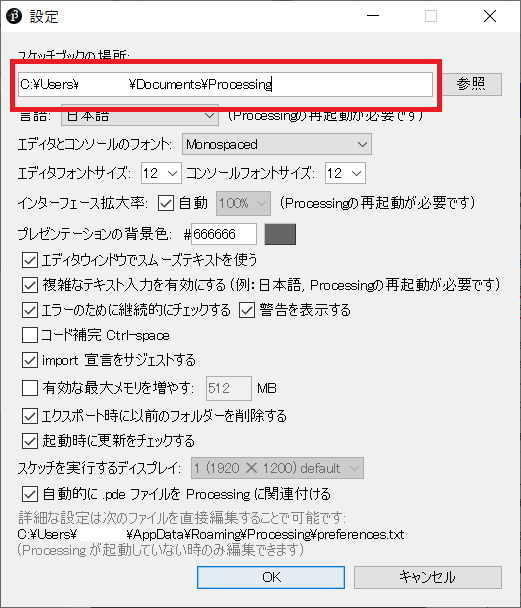

This can be found by selecting File → Preferences.

Open the Sketchbook location using Explorer.

Copy the extracted OpenRTMUtil folder from the following ZIP archive into the libraries folder within the Sketchbook directory.

• OpenRTMUtil.zip

For workshops and training sessions, the Processing\OpenRTMUtil folder on the USB drive may be used instead.

After copying, the directory structure should look like this:

 Sketchbook
    ├ examples
    ├ modes
    ├ templates
    ├ tools
    └ libraries
         └ OpenRTMUtil
                └ library
                     ├ commons-cli-1.1.jar
                     ├ jna-4.2.2.jar
                     ├ jna-platform-4.2.2.jar
                     ├ LogicalTimeTriggeredEC.jar
                     ├ NameserviceFile.jar
                     ├ OpenRTM-aist-2.1.0.jar
                     ├ OpenRTMUtil.jar
                     ├ rtcd.jar
                     └ rtcprof.jar

Installing grafica

Install the grafica graph-drawing library.

In Processing, select:

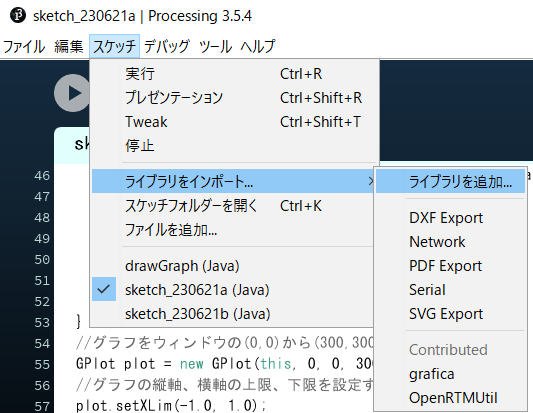

Sketch → Import Library → Add Library

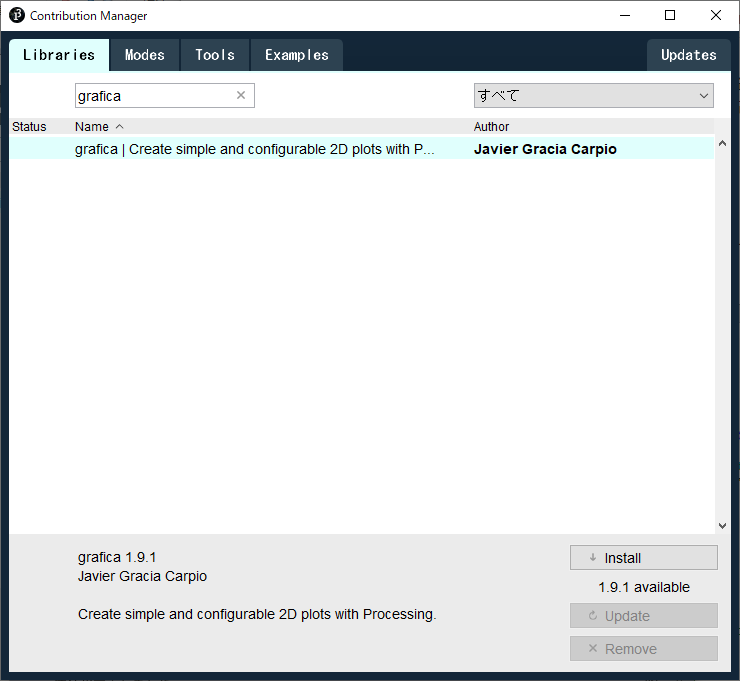

Search for grafica in the Contribution Manager and install it.

Programming

Next, implement the RTC in Processing.

Open drawGraphMain.pde, which was generated by RTCBuilder.

You can open it by dragging and dropping drawGraphMain.pde onto processing.exe.

In the Processing editor, add window size and frame rate settings to the setup() function in drawGraphMain.pde.

 public void setup() {
   // Set window size
   size(300, 300); // Added
   frameRate(10);  // Added

Next, edit drawGraphImpl.pde.

Add the following import statement for the grafica library.

 import RTC.ReturnCode_t;

 import grafica.*; // Added

Next, declare the variable data, which stores the received position and orientation data.

    protected InPort<TimedPose2D> m_inIn;

    // Array for storing graph points
    GPointsArray data; // Added

Modify the onActivated() function as follows:

    @Override
    protected ReturnCode_t onActivated(int ec_id) {
        // Initialize data array
        data = new GPointsArray();
        return super.onActivated(ec_id);
    }

Finally, modify the onExecute() function as follows:

    @Override
    protected ReturnCode_t onExecute(int ec_id) {
        // Processing when data is received from InPort
        if (m_inIn.isNew())
        {
          // Read received data
          m_inIn.read();

          // Add the received position to the data array
          data.add((float)m_in.v.data.position.x,
                   (float)m_in.v.data.position.y);

          // Discard old data if more than 1000 points exist
          if (data.getNPoints() > 1000)
          {
            data.remove(0);
          }
        }

        // Draw the graph in the area from (0,0) to (300,300)
        GPlot plot = new GPlot(m_applet, 0, 0, 300, 300);

        // Set graph axis limits
        plot.setXLim(-1.0, 1.0);
        plot.setYLim(-1.0, 1.0);
        plot.setFixedXLim(true);
        plot.setFixedYLim(true);

        // Set graph data
        plot.addPoints(data);

        // Start drawing
        plot.beginDraw();

        // Draw graph frame, points, lines, and axes
        plot.drawBox();
        plot.drawPoints();
        plot.drawLines();
        plot.drawXAxis();
        plot.drawYAxis();

        // Finish drawing
        plot.endDraw();

        return super.onExecute(ec_id);
    }

Building the RT System and Verifying Operation

Next, verify the operation of the created drawGraph component.

Use either:

• Raspberry Pi Mouse Simulator (RaspberryPiSimulator)
• Raspberry Pi Mouse hardware RTC (RaspberryPiMouseRTC)

You will also use RobotController, created in the following tutorial:

• Tutorial (Introduction to RT Component Development, Raspberry Pi Mouse, Windows)

Start the drawGraph component created in Processing.

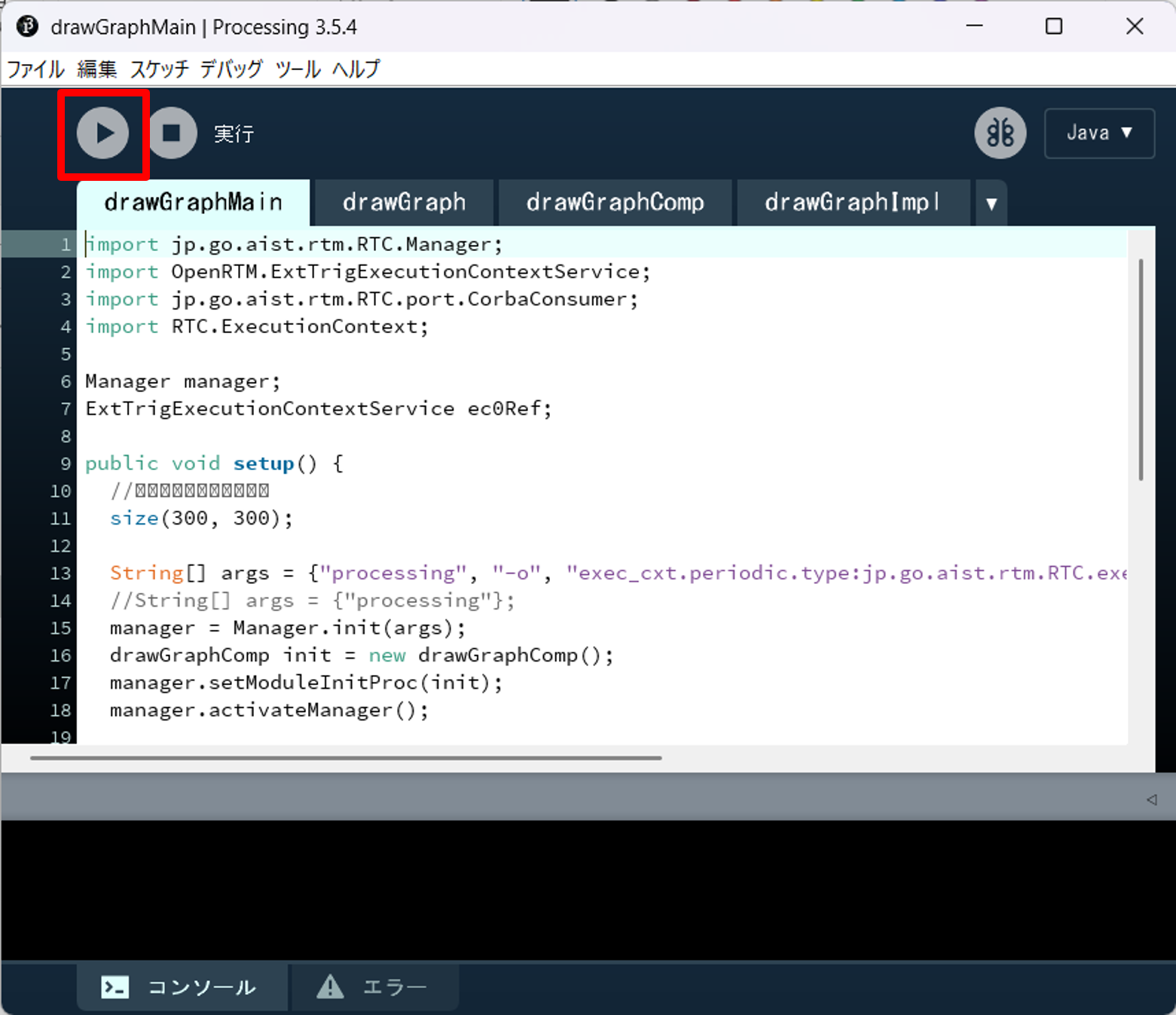

Click the Run button in Processing.

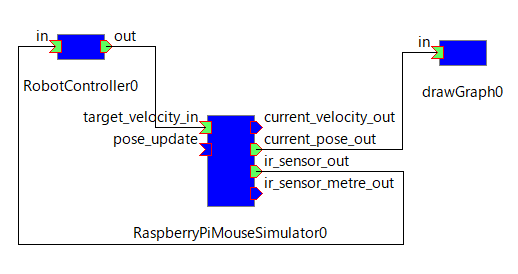

Connect the ports in RT System Editor as shown below.

Activate the RTCs.

When you operate the RobotController configuration parameters using the sliders, the Raspberry Pi Mouse will move, and its movement trajectory will be displayed on the graph.

Procedure for OpenRTM-aist Versions Prior to 2.0

OpenRTM-aist versions earlier than 2.0 do not provide Processing code-generation functionality.

Therefore, source code using the OpenRTMUtil library shown below is required.

Enter the following code into the Processing development environment.

Processing uses:

• setup() — called once when execution starts
• draw() — called periodically

The setup() function creates the RTC, while the draw() function reads InPort data and updates the graph display.

(The source code below remains unchanged.)
