master manager and slave manager

#contents

Overview

Manager

A manager is a mechanism for managing RTCs. One manager runs in each process.

Master Manager and Slave Manager

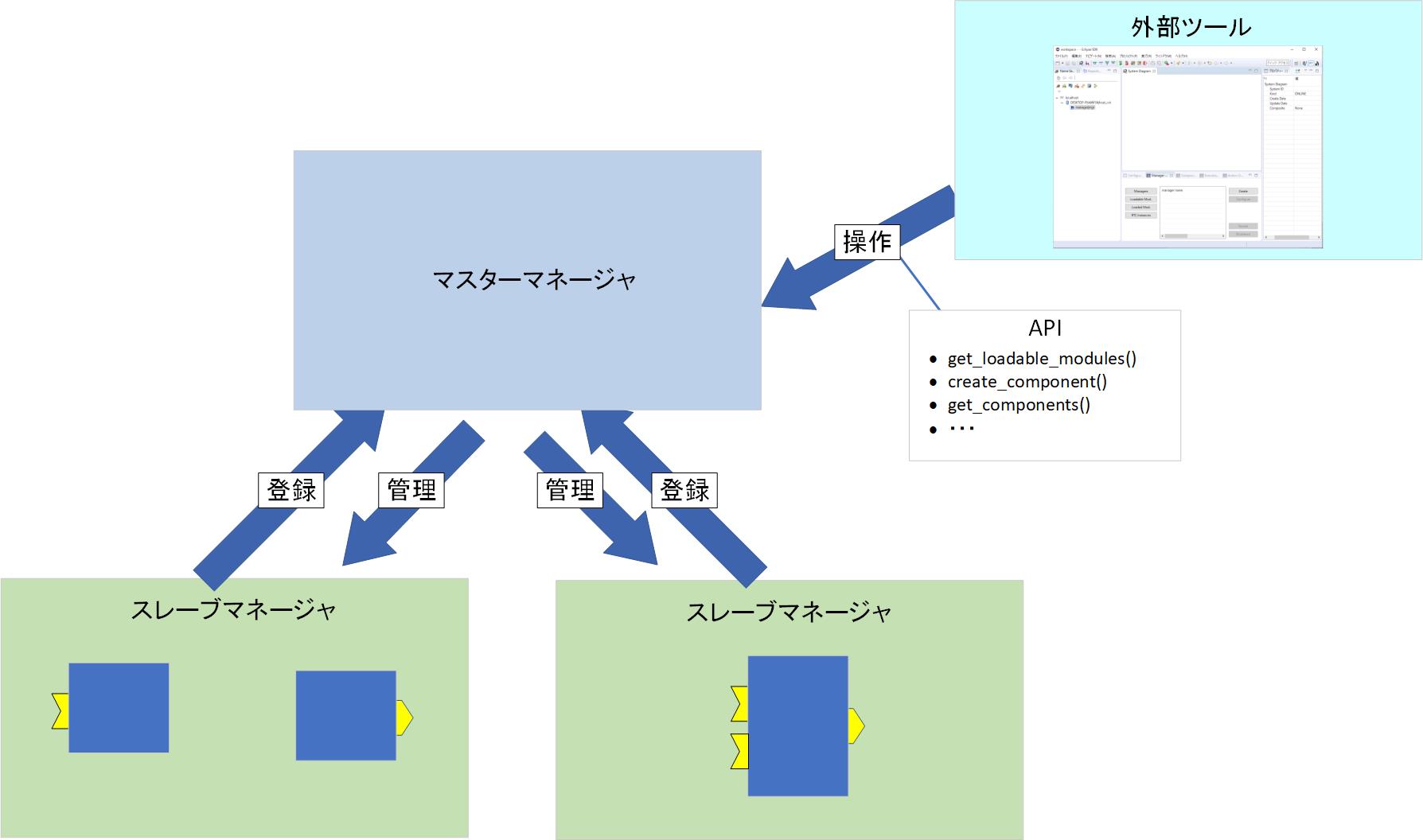

There are two types of managers: the Master Manager and the Slave Manager. The Master Manager is a higher-level manager that manages Slave Managers, while the Slave Manager is responsible for creating and executing RTCs.

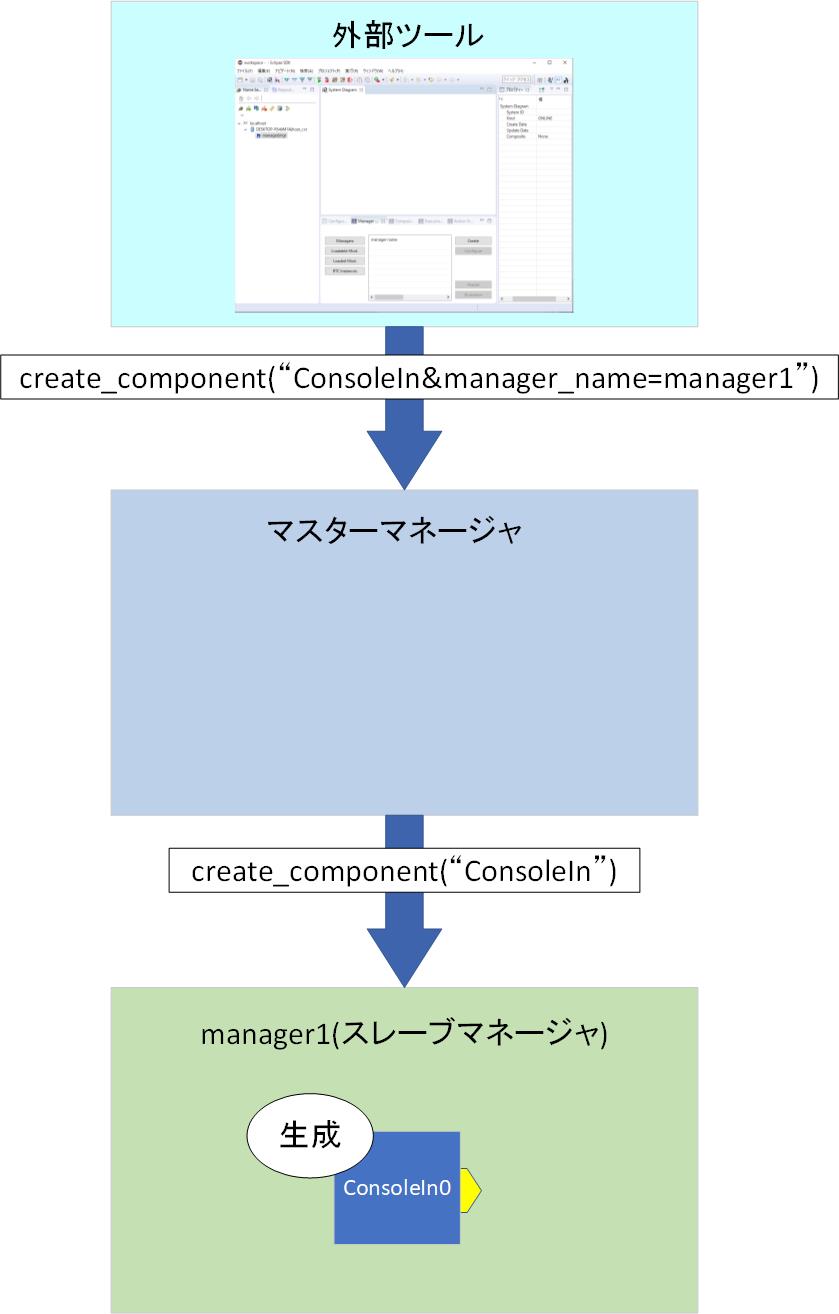

By calling the Master Manager API from external tools such as RTSystemEditor, operations such as creating and deleting RTCs can be performed. RTCs are not started directly on the Master Manager. Instead, the Master Manager calls the API of a Slave Manager and instructs it to start the RTC.

The following is an example of a Python program that instructs the Master Manager to create an RTC.

import sys
from omniORB import CORBA
import RTM

orb = CORBA.ORB_init(sys.argv, CORBA.ORB_ID)
obj = orb.string_to_object("corbaloc:iiop:localhost:2810/manager")
mgr = obj._narrow(RTM.Manager)

rtc = mgr.create_component("ConsoleIn&manager_name=samplemaneger")

To start the Master Manager, execute rtcd with the -d option.

rtcd -d -f rtc.conf

The module search path must be configured in rtc.conf.

manager.modules.load_path: C:/Program Files/OpenRTM-aist/1.2.2/Components/C++/OpenCV/vc14

To start a Slave Manager, no special options are required. However, configure the manager name and module search path in rtc.conf. Also, the default configuration automatically shuts down the manager when no RTCs are running, so disable this feature.

manager.instance_name: samplemaneger
manager.modules.load_path: C:/Program Files/OpenRTM-aist/1.2.2/Components/C++/OpenCV/vc14
manager.shutdown_auto:NO

API

load_module

unload_module

get_loadable_modules

get_loaded_modules

get_factory_profiles

create_component

create_component is the API used to create an RTC. Specify the vendor name, category name, component name, language name, and version number of the RTC to be started as follows.

mgr.create_component("RTC:AIST:Example:ConsoleIn:C++:1.0.0")

The argument string has the following format.

RTC:[vendor]:[category]:[implementation_id]:[version]

However, all fields except implementation_id can be omitted, so you can create an RTC by specifying only the RTC name as follows.

mgr.create_component("ConsoleIn")

Although the RTC runs on a Slave Manager, you can specify the Slave Manager on which to start the RTC by using the manager_name option.

mgr.create_component("ConsoleIn&manager_name=samplemaneger")

To start an RTC on a Slave Manager specified by its address and port number, use the manager_address option.

mgr.create_component("Flip&manager_address=localhost:2811")

Manager Behavior

When a Slave Manager name is specified but the specified Slave Manager is not running

If a Slave Manager name is specified with the manager_name option and the specified Slave Manager is not running, the Master Manager starts a Slave Manager with the specified name. For example, if the Slave Manager named samplemaneger is not running, a new Slave Manager named samplemaneger is started.

mgr.create_component("ConsoleIn&manager_name=samplemaneger")

When no Slave Manager name is specified

If the manager_name option is not specified as shown below, a new Slave Manager named manager_[process ID] is started.

mgr.create_component("ConsoleIn")

When RTCs with the same component name are available

For example, the OpenRTM-aist sample components include three versions of the ConsoleIn component implemented in C++, Python, and Java. To distinguish and start RTCs with the same component name, specify the language name as follows.

mgr.create_component("RTC:AIST:Example:ConsoleIn:Python:1.0.0")

If the language name is still insufficient to distinguish the RTC, start the Slave Manager that will execute the RTC in advance, and specify the manager name in create_component.

delete_component

get_components

get_component_profiles

get_components_by_name

get_profile

get_configuration

set_configuration

is_master

get_master_managers

add_master_manager

remove_master_manager

get_slave_managers

To call the API of a Slave Manager directly, obtain the Slave Manager from the Master Manager by using get_slave_managers, and then invoke its API. The following example loads a module and starts an RTC on a Slave Manager with the specified name.

import sys
from omniORB import CORBA
import RTM
import OpenRTM_aist

orb = CORBA.ORB_init(sys.argv, CORBA.ORB_ID)
obj = orb.string_to_object("corbaloc:iiop:localhost:2810/manager")
mgr = obj._narrow(RTM.Manager)
print(mgr.create_component("Flip&manager_name=samplemaneger"))


def getSlaveManager(master, slavename):
    slavemgrs = master.get_slave_managers()
    for slavemgr in slavemgrs:
        prof = slavemgr.get_configuration()
        prop = OpenRTM_aist.Properties()
        OpenRTM_aist.NVUtil.copyToProperties(prop, prof)
        name = prop.getProperty("manager.instance_name")
        if name == slavename:
            return slavemgr
    return None


samplemaneger = getSlaveManager(mgr, "samplemaneger")
samplemaneger.load_module(
    "C:\\Program Files\\OpenRTM-aist\\1.2.2\\Components\\C++\\Examples\\vc14\\ConsoleIn.dll", "ConsoleInInit")
samplemaneger.create_component("ConsoleIn")
