openrtm-aist use cases on raspberry pi
✏️ Edit this page on GitHub
Introduction
Raspberry Pi is a single-board computer developed by the Raspberry Pi Foundation in the United Kingdom and is based on ARM processors.
Despite its compact embedded-board form factor, Raspberry Pi can run standard ARM versions of Linux distributions (Debian, Fedora, Arch Linux) as well as FreeBSD. Since it supports native compilation directly on the board, it is very easy to use.
Storage is provided via inexpensive, high-capacity SD cards, and the board itself is also very affordable, costing around 3,000 yen.
In addition, Raspberry Pi provides a variety of basic I/O interfaces and can connect to numerous external devices, making it suitable for applications such as robot control, sensor measurement, and many other embedded and robotics projects.
Specifications

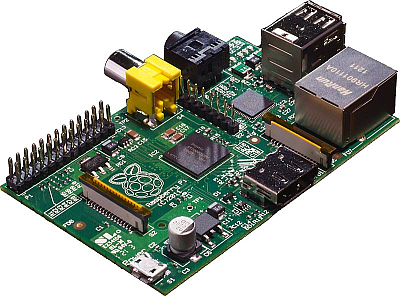

The appearance of a Raspberry Pi is shown below.
Raspberry Pi is available in three primary categories (Model A, Model B, and Model Zero), with multiple variations within each category. For details, refer to the Wikipedia page below.
- Wikipedia: http://ja.wikipedia.org/wiki/Raspberry_Pi
Representative model specifications are shown below.
| Specifications | |||
| 3 Model B | 3 Model B+ | 4 Model B (4 GB) | |
| Target Price | $35 | $35 | $55 |
| SoC | Broadcom BCM2837 | Broadcom BCM2837B0 | Broadcom BCM2711 |
| CPU | ARM Cortex-A53 1.2 GHz | ARM Cortex-A53 1.4 GHz | ARM Cortex-A72 1.5 GHz |
| GPU | Broadcom VideoCore IV | Broadcom VideoCore VI | |
| Memory (SDRAM) | 1 GB (shared with GPU) | 4 GB (shared with GPU) | |
| USB 2.0 Ports | 4 (integrated USB hub) | 4 | 2 |
| USB 3.0 Ports | - | 2 | |
| Video Output | Composite RCA (PAL & NTSC), HDMI (rev 1.3 & 1.4), MIPI DSI | Composite RCA (PAL/NTSC), dual micro-HDMI 2.0 (up to 4Kp60), MIPI DSI | |
| Audio Output | 3.5 mm jack, I2S, HDMI | 3.5 mm jack, I2S, micro HDMI | |
| Storage | SD Memory Card / MMC / SDIO card slot | ||
| Networking | 10/100 Mbps Ethernet (RJ45) | Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps) (RJ45) | Gigabit Ethernet (RJ45) |
| Low-Level Peripherals | 8 × GPIO, UART, I2C, SPI with two chip selects, +3.3V, +5V, Ground | ||
| Power | 2.5 A (12.5 W) | 3 A (15 W) | |
| Power Source | 5 V via microUSB or GPIO | 5 V via USB Type-C or GPIO | |
| Dimensions | 85.0 mm × 56.5 mm | 85.0 mm × 56.0 mm | |
For more detailed specifications, please refer to the Wiki page and other related resources.
Overview of This Book

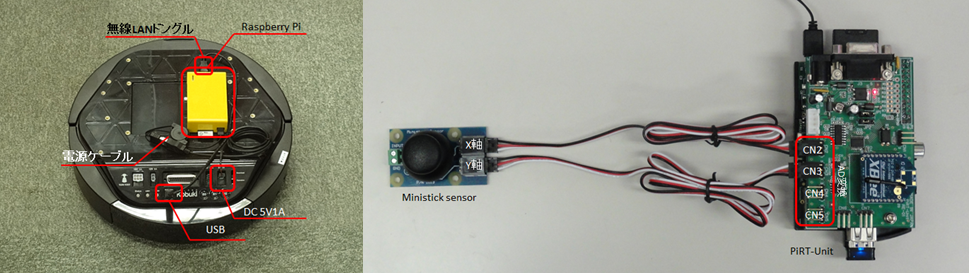

Using the PiRT-Unit I/O expansion board developed by AIST, I/O devices can be utilized relatively easily.
OpenRTM-aist (C++, Python, and Java editions) can be compiled and executed directly on Raspberry Pi. As a result, despite being an embedded platform, it can be used in much the same way as a standard Linux PC development environment.
This guide explains:
- How to build a development environment for OpenRTM-aist
- Useful tips and operational know-how
- Methods for controlling mobile robots
- Techniques for utilizing I/O devices
- Development and execution of RT Components
