system editor (save)

✏️ Edit this page on GitHub

#contents

This section explains how to save and open the System Editor.

Saving the System Editor

The System Editor can be saved. To save it, select [File] from the menu or right-click the editor and select “Save”. (“Save As…” allows you to freely select the file to save.)

System Editor Save Menu Context Menu


When you select system save, the profile information dialog opens. Set the required items and click the [OK] button to save the system information to a file.

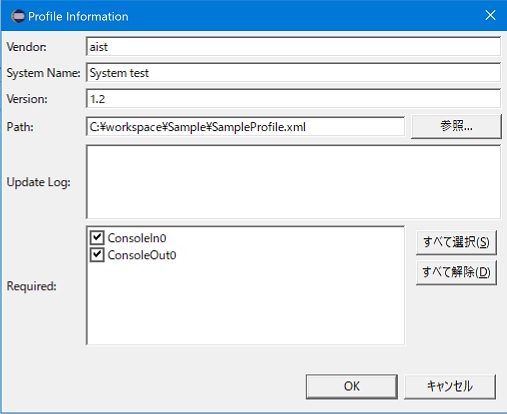

Profile Information Dialog


Profile Information Items
Name Shape
Vendor Vendor name. An element that makes up the RT system identifier.
Required item.
System Name System name. An element that makes up the RT system identifier.
Required item.
Version System version. An element that makes up the RT system identifier.
Required item.
Path File name used to save the system.
Required item.
Update Log Describes supplementary information such as version notes.
Required Check the RTCs required to operate the RT system.

Opening a Saved System Editor

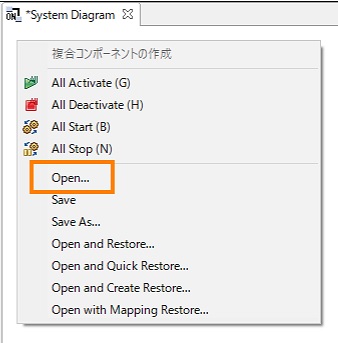

To open a saved System Editor, right-click the editor and select “Open”.

Opening the System Editor


After opening, RT System Editor treats the remote system as the correct source and updates it with the latest information. To restore the saved contents to the system, use “Open and Restore…”, described in the next section.

Opening and Restoring a Saved System

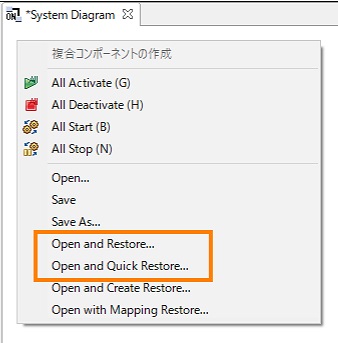

To open and restore a saved System Editor, right-click the editor and select “Open and Restore…” or “Open and Quick Restore…”.

Opening and Restoring the System Editor


The following contents are restored to the system.

  • Connections between ports (when the connector from the time of saving does not exist)
  • Configuration information~ During restoration, the name service is searched using the component path ID to obtain the remote component.
    When “Quick Restore” is selected, before accessing the name service, it attempts to obtain the remote component using the IOR saved in the profile. If it cannot be obtained, the name service is searched.
    If restoration fails, the error details are displayed.
Error Message for Restoration Failure


RT System Editor also attempts to restore as much as possible even when an error occurs.
