This section explains the Composite Component View.

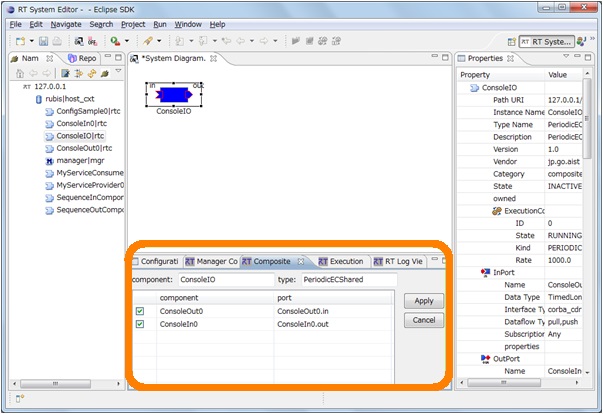

Location of the Composite Component View

In the Composite Component View, port public/private information for the selected composite RTC is displayed, and you can set ports to public or private.

Composite Component View

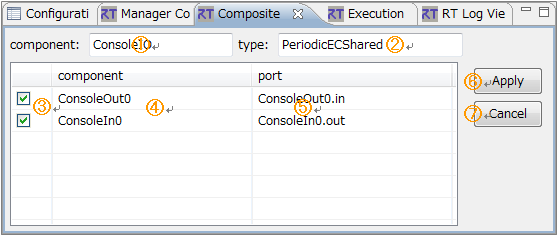

Screen Layout of the Composite Component View

No.	Description
①	Instance name of the composite RTC.
②	Type name of the composite RTC.
③	Public/private state of the port.
④	Instance name of the child RTC included in the composite RTC.
⑤	Port name of the child RTC included in the composite RTC.
⑥	Applies changes to the public/private state of ports.
⑦	Cancels changes to the public/private state of ports.

Information being edited in the Composite Component View is not applied until the [Apply] button in ⑥ is clicked. Information being modified (not yet applied) is displayed in light red. Ports selected in the System Editor are displayed in light yellow.

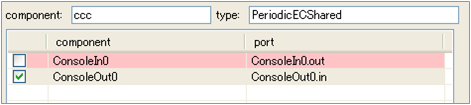

Editing Port Public/Private Settings

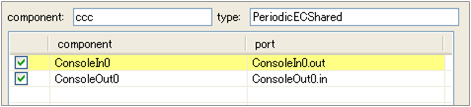

Port Selected in the System Editor

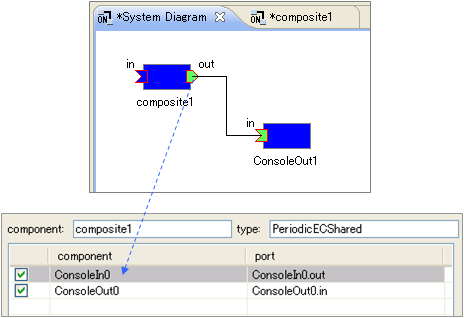

If a port of a composite component is connected to a port of another component, the corresponding port is displayed in gray in the Composite Component View and cannot be edited.

When Connected to Another Port
