This section explains the Log View.

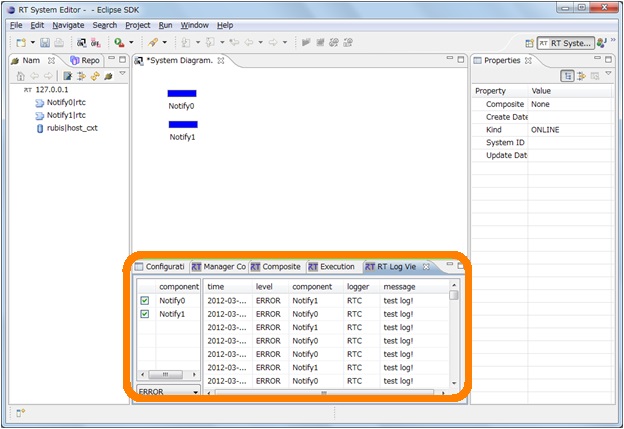

Location of the Log View

The Log View displays a list of RTCs targeted for log collection on the selected diagram, and displays log messages notified from the RTCs.
You can select the RTCs you want to display, and you can also filter the display by log level.

Log View

Screen Layout of the Log View

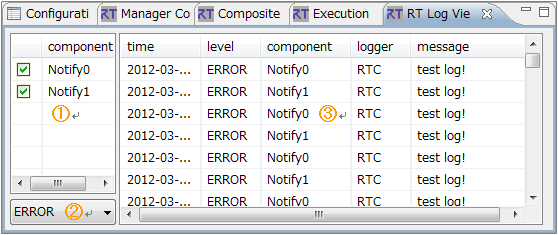

No.	Description
①	Displays a list of RTCs in the selected diagram that are targeted for log collection. Logs of RTCs checked here are displayed.
②	Specifies the threshold of the log level to display. Log messages at or above the specified level are displayed.
③	Displays log messages. The display is filtered by RTC selection and log level specification. The displayed items are as follows. ・Timestamp ・Log level (SILENT/ERROR/WARN/INFO/DEBUG/TRACE/VERBOSE/PARANOID) ・RTC instance name ・Log notification target ・Log message

When a diagram is selected, the list of RTCs targeted for log collection on the diagram is displayed in ①. Logs are notified from RTCs by the log notification observer function, and RTCs for which observers have been registered become targets for log collection.
When you select (check) the RTCs whose logs you want to display from the list, messages are displayed in the log display table in ③.
Log messages can also be filtered by log level. When you select the threshold level from the combo box in ②, only logs at or above the selected level are displayed. For example, if “INFO” is selected in the combo box, only “ERROR”, “WARN”, and “INFO” messages are displayed.

Filtering the Log Display
