This section explains the Property View.

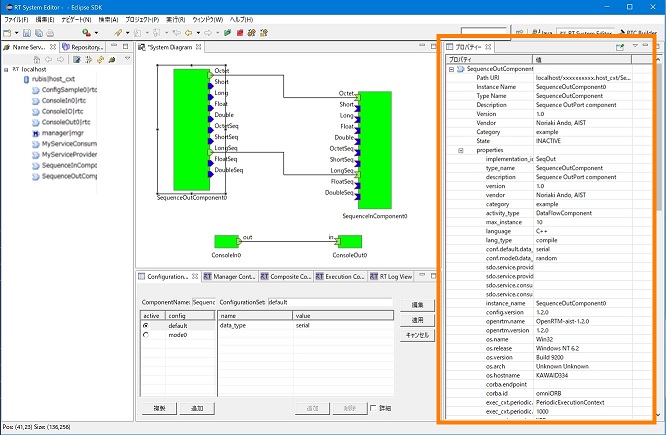

Location of the Property View

The Property View displays profile information of RTCs and connectors selected in the System Dialog in real time. (Even while an RTC is selected, if a change is detected, it is reflected immediately.)

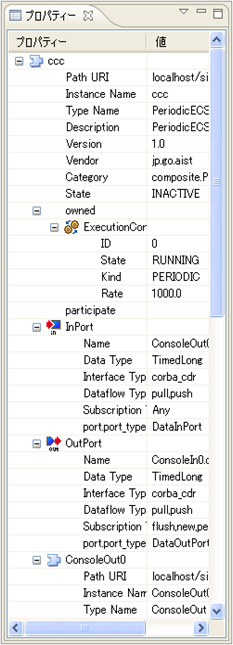

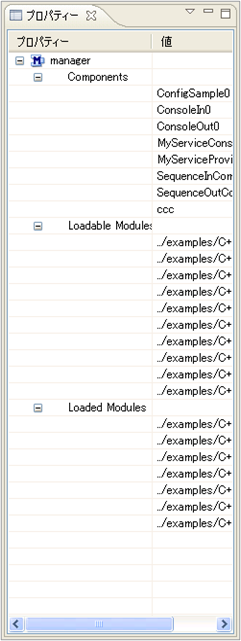

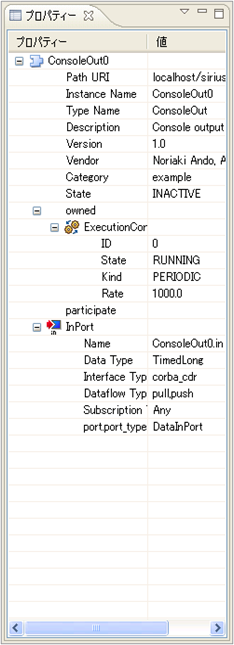

For RTC	For Composite RTC	For Manager

Property View

The meanings of the displayed icons are as follows.

List of Property Icons

No.	Icon	Name	Display Contents
1		RTC	InstanceName, TypeName, Description, Vender, Category, State (*displayed based on the LifeCycleState of the first ExecutionContext)
2		ExecutionContext	State, Kind, Rate
3		ServicePort	Name, list of property information
4		Outport	Name, list of property information
5		Inport	Name, list of property information
6		PortInterfaceProfile	InterfaceName, TypeName, PortInterfacePolarity
7		Manager	Components (list of created component names) Loadable Modules (list of loadable module names) Loaded Modules (list of loaded module names)

According to the RTC specification, an RTC’s LifeCycleState exists for each ExecutionContext. Therefore, multiple states exist, but RT System Editor displays STATE using only the first ExecutionContext.
