TkMotorComp

This sample is included with the Python edition of OpenRTM-aist.

Please note that it is not included with the C++ or Java editions.

Overview

This is a sample RT Component with a GUI interface. The sample component can be started by running:

TkMotorComp.bat

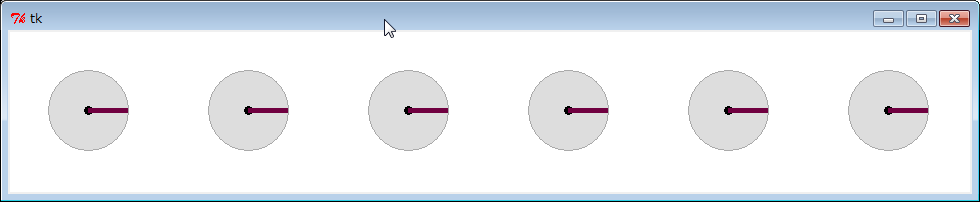

Startup Screen

TkMotorComp Execution Example

---

SliderComp

This sample is included with the Python edition of OpenRTM-aist.

Please note that it is not included with the C++ or Java editions.

Overview

This is a sample RT Component with a GUI interface. The sample component can be started by running:

SliderComp.bat

(The screen shown below is from a Windows environment.)

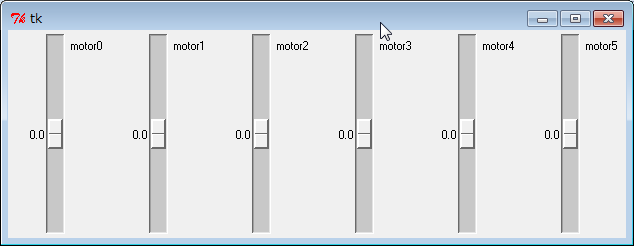

Startup Screen

SliderComp Execution Example

---

System Configuration

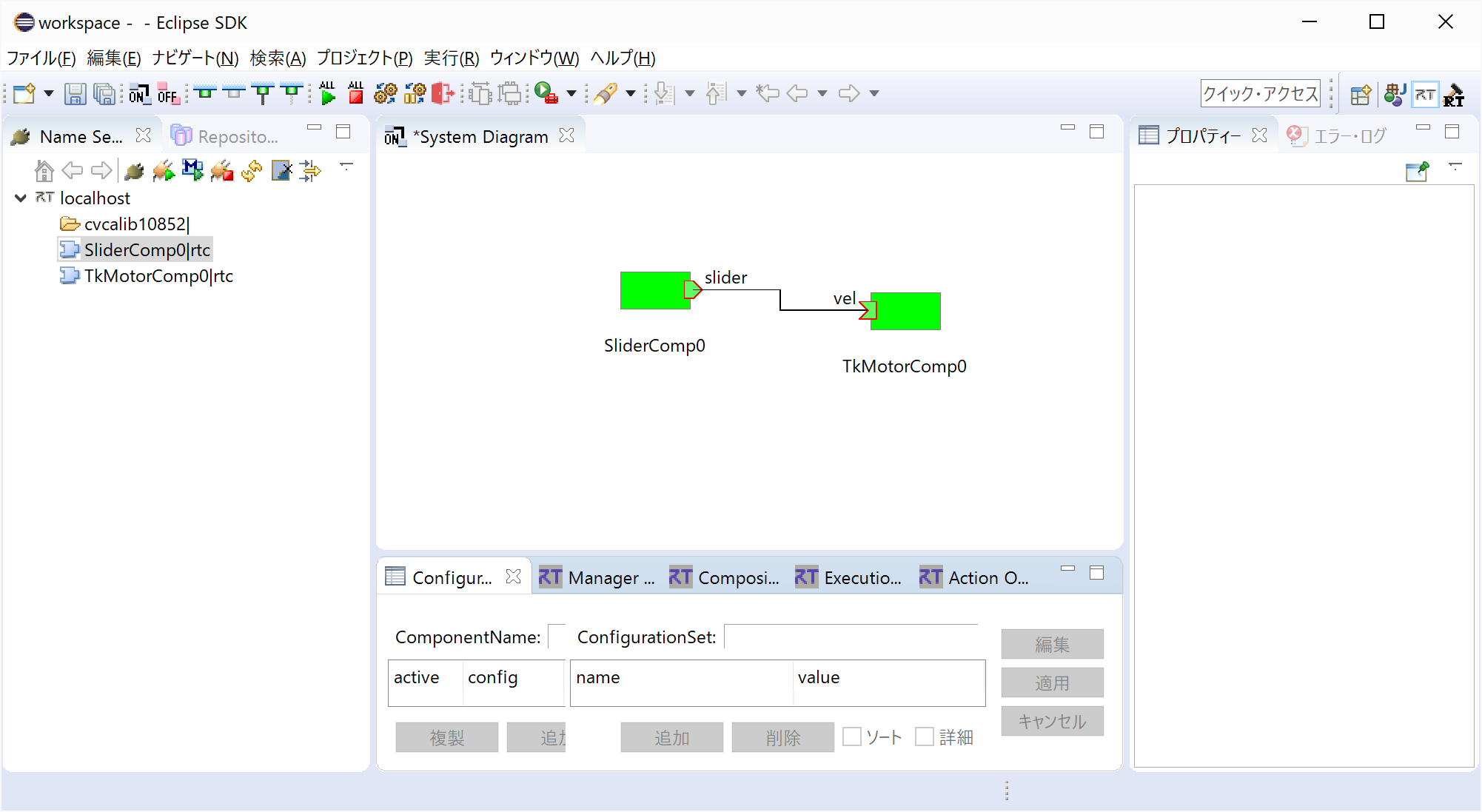

SliderComp and TkMotorComp in RTSystemEditor

Usage

SliderComp and TkMotorComp together provide a GUI-based simulation environment in which slider controls are used to control motor rotation.

• Procedure

  • Start RTSystemEditor and open a new SystemEditor.

    For details on using RTSystemEditor, refer to:

    RTSystemEditor

  • Start both components:

    SliderComp.bat
    TkMotorComp.bat


  • Both components will appear in the Name Service View of RTSystemEditor. Drag them onto the SystemEditor.

  • Connect the corresponding ports of the two components. (Refer to the RTSystemEditor example shown above.)

  • Right-click either component and select:

    [Activate Systems]


  • In the TkMotorComp GUI, a set of rotating disks representing motor-driven actuators will be displayed.

  • Verify that the rotation of these disks can be controlled using the vertical slider knobs in the SliderComp GUI.

  • The six slider knobs correspond to six simulated motor rotations.
